DXF Series

Precision - Ball Screw

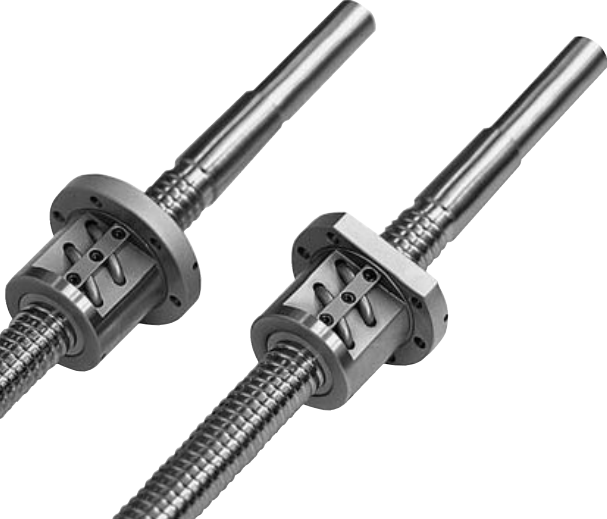

DXF Series 볼스크류

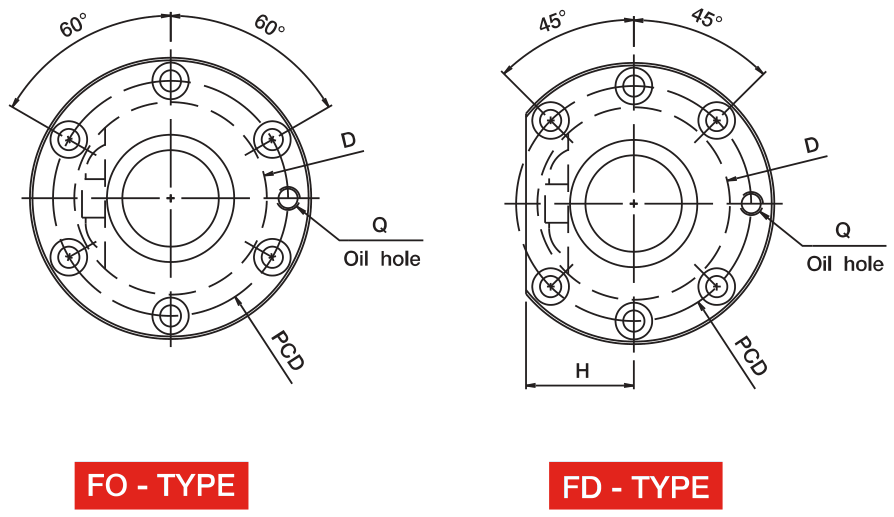

DXF 정면도 (VIEW X-X)

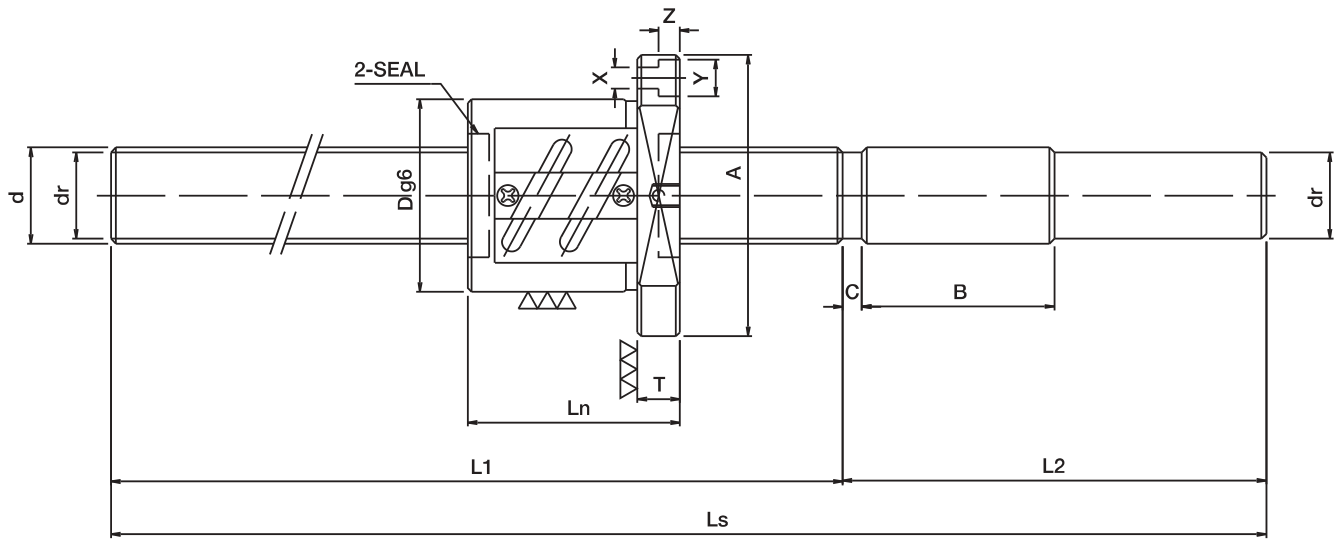

DXF 측면 치수도

DXF-0000A · 일체형 예압너트 (A type)

Model number	Screw diameter d	Lead l	Ball diameter Da	Root diameter dr	Turn × Circuit	Load rating		Stiffen Kgf/µm	Nut (Dimension)										Screw shaft length
						Ca Kgf	Coa Kgf		Body D	Flange A	H	Ln	T	PCD	Set hole			Q	Ls	L1 (Ls-L2)	L2	C	B
						Ca Kgf	Coa Kgf		Body D	Flange A	H	Ln	T	PCD	X	Y	Z	Q	Ls	L1 (Ls-L2)	L2	C	B
DXF-1605A 2D DWG 3D STEP	16	5	3.175 (1/8")	13.4	2.5×1 (2-tube)	750	1400	32	40	60	23	56	10	50	4.5	8	4.5	M6	610, 810, 1010	530, 730, 930	80	5	30
DXF-2005A 2D DWG 3D STEP	20	5	3.175 (1/8")	17.4	2.5×1 (2-tube)	850	1740	39	44	67	26	55	11	55	5.5	9	5.5	M6	610, 810, 1010	500, 700, 900	110	5	40
DXF-2505A 2D DWG 3D STEP	25	5	3.175 (1/8")	22.4	2.5×1 (2-tube)	930	2240	47	50	73	28	55	11	61	5.5	9	5.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-2805A 2D DWG 3D STEP	28	5	3.175 (1/8")	25.4	2.5×1 (2-tube)	980	2500	50	55	84	31	56	12	69	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-2806A 2D DWG 3D STEP	28	6	3.969 (5/32")	24.7	2.5×1 (2-tube)	1310	3050	52	55	84	31	63	12	69	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-3205A 2D DWG 3D STEP	32	5	3.175 (1/8")	29.4	2.5×1 (2-tube)	1040	2870	57	58	84	32	56	12	71	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	5	60
DXF-3206A 2D DWG 3D STEP		6	3.969 (5/32")	28.7	2.5×1 (2-tube)	1400	3560	59	62	89	34	63	12	75	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	5	60
DXF-3210A 2D DWG 3D STEP		10	6.350 (1/4")	27.1	2.5×1 (2-tube)	2600	5630	61	74	108	41	100	15	90	9	14	8.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	10	55
DXF-3606A 2D DWG 3D STEP	36	6	3.969 (5/32")	32.7	2.5×1 (2-tube)	1510	4050	64	65	99	38	67	15	82	9	14	8.5	M6	810, 1010, 1210, 1510, 1810	630, 830, 1030, 1330, 1630	180	5	70
DXF-3610A 2D DWG 3D STEP	36	10	6.350 (1/4")	31.1	2.5×1 (2-tube)	2760	6220	68	75	119	45	100	18	98	11	17.5	11	M6	810, 1010, 1210, 1510, 1810	630, 830, 1030, 1330, 1630	180	10	70
DXF-4010A 2D DWG 3D STEP	40	10	6.350 (1/4")	35.1	2.5×1 (2-tube)	2930	7040	74	82	124	47	100	18	102	11	17.5	11	1/8"	1210, 1510, 1810, 2110, 2410	1030, 1330, 1630, 1930, 2230	180	10	80
DXF-4510A 2D DWG 3D STEP	45	10	6.350 (1/4")	40.1	2.5×1 (2-tube)	3120	8060	85	88	132	50	100	18	110	11	17.5	11	1/8"	1210, 1510, 1810, 2110, 2410	1030, 1330, 1630, 1930, 2230	180	10	80
DXF-5010A 2D DWG 3D STEP	50	10	6.350 (1/4")	45.1	2.5×1 (2-tube)	3250	8930	90	93	135	51	100	18	113	11	17.5	11	1/8"	1210, 1510, 1810, 2110, 2410	1010, 1310, 1610, 1910, 2210	200	10	90

DXF-0000B · 일체형 예압너트 (B type)

Model number	Screw diameter d	Lead l	Ball diameter Da	Root diameter dr	Turn × Circuit	Load rating		Stiffen Kgf/µm	Nut (Dimension)										Screw shaft length
						Ca Kgf	Coa Kgf		Body D	Flange A	H	Ln	T	PCD	Set hole			Q	Ls	L1 (Ls-L2)	L2	C	B
						Ca Kgf	Coa Kgf		Body D	Flange A	H	Ln	T	PCD	X	Y	Z	Q	Ls	L1 (Ls-L2)	L2	C	B
DXF-2005B 2D DWG 3D STEP	20	5	3.175 (1/8")	17.4	2.5×2 (4-tube)	1530	3520	73	44	67	26	85	11	55	5.5	9	5.5	M6	610, 810, 1010	500, 700, 900	110	5	40
DXF-2505B 2D DWG 3D STEP	25	5	3.175 (1/8")	22.4	2.5×2 (4-tube)	1690	4470	90	50	73	28	85	11	61	5.5	9	5.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-2805B 2D DWG 3D STEP	28	5	3.175 (1/8")	25.4	2.5×2 (4-tube)	1780	4990	98	55	84	31	86	12	69	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-2806B 2D DWG 3D STEP	28	6	3.969 (5/32")	24.7	2.5×2 (4-tube)	2380	6100	100	55	84	31	99	12	69	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1410	480, 680, 880, 1080, 1280	130	5	50
DXF-3205B 2D DWG 3D STEP	32	5	3.175 (1/8")	29.4	2.5×2 (4-tube)	1870	5740	109	58	84	32	86	12	71	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	5	60
DXF-3206B 2D DWG 3D STEP		6	3.969 (5/32")	28.7	2.5×2 (4-tube)	2520	7120	112	62	89	34	99	12	75	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	5	60
DXF-3210B 2D DWG 3D STEP		10	6.350 (1/4")	27.1	2.5×2 (4-tube)	4720	11000	118	74	108	41	157	15	90	9	14	8.5	M6	610, 810, 1010, 1210, 1510	450, 650, 850, 1050, 1350	160	10	55
DXF-3606B 2D DWG 3D STEP	36	6	3.969 (5/32")	32.7	2.5×2 (4-tube)	2730	8100	120	65	99	38	102	15	82	9	14	8.5	M6	810, 1010, 1210, 1510, 1810	630, 830, 1030, 1330, 1630	180	5	70
DXF-3610B 2D DWG 3D STEP	36	10	6.350 (1/4")	31.1	2.5×2 (4-tube)	5010	12450	126	75	119	45	160	18	98	11	17.5	11	M6	810, 1010, 1210, 1510, 1810	630, 830, 1030, 1330, 1630	180	10	70
DXF-4010B 2D DWG 3D STEP	40	10	6.350 (1/4")	35.1	2.5×2 (4-tube)	5320	14080	143	82	124	47	160	18	102	11	17.5	11	1/8"	1210, 1510, 1810, 2110, 2410	1030, 1330, 1630, 1930, 2230	180	10	80
DXF-5010B 2D DWG 3D STEP	50	10	6.350 (1/4")	45.1	2.5×2 (4-tube)	5910	17860	173	93	135	51	160	18	113	11	17.5	11	1/8"	1210, 1510, 1810, 2110, 2410	1010, 1310, 1610, 1910, 2210	200	10	90

※ 정밀연삭 볼스크류 · 일체형 예압너트 (A type 저하중 / B type 고하중) · 단위: 하중 Kgf, 치수 mm · 2D·3D 도면은 모델명 아래 버튼으로 내려받을 수 있습니다 (3D는 플랜지 FO·FD 타입이 ZIP 하나로 제공).
