STANDARD PARTS

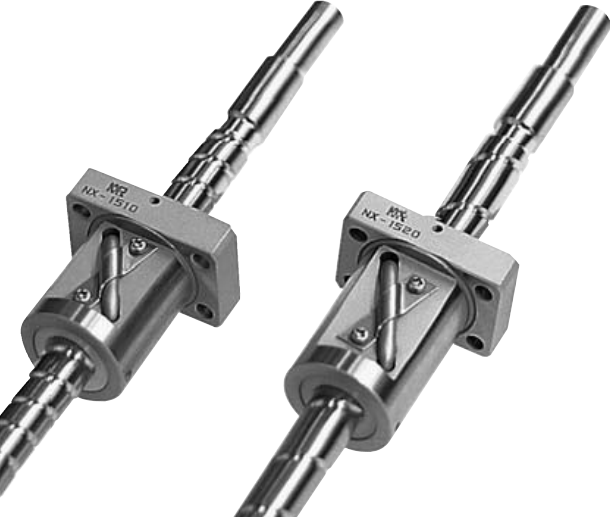

NX Series

Precision - Ball Screw

Model number	Screw diameter d	Lead l	Ball diameter Da	Root diameter dr	Turn × Circuit	Load rating		Stiffen Kgf/µm	Nut (Dimension)										Screw shaft length

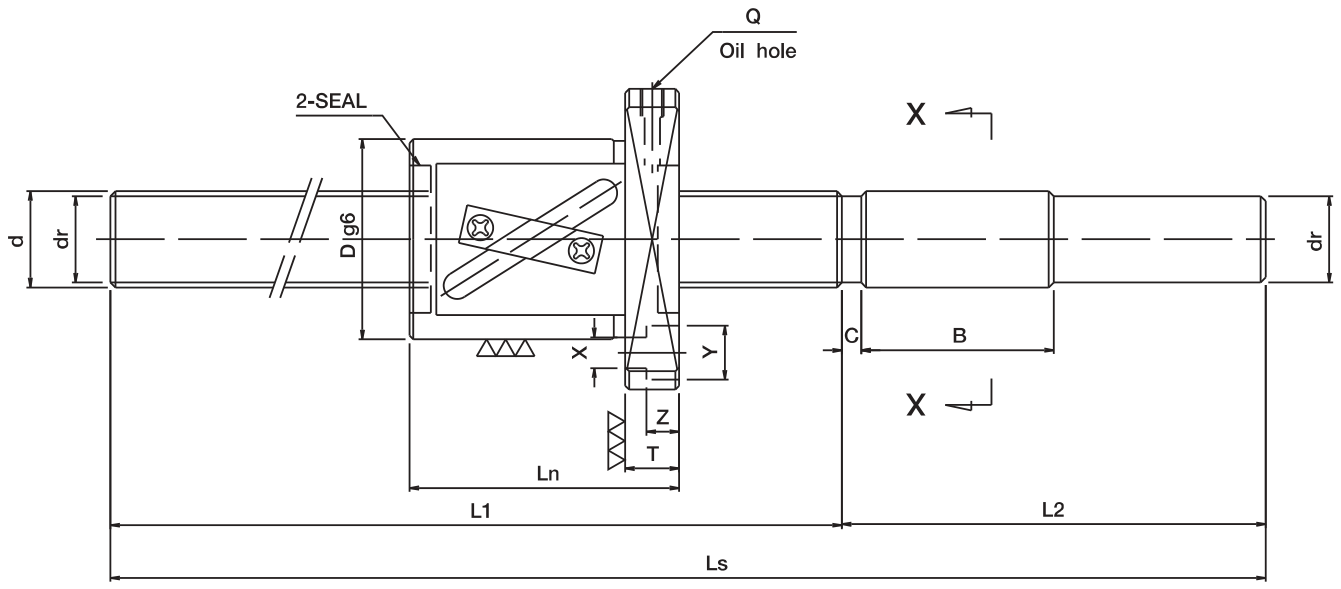

						Ca Kgf	Coa Kgf		Body D	Flange		Ln	T	PCD	Set hole			Q	Ls	L1 (Ls-L2)	L2	C	B

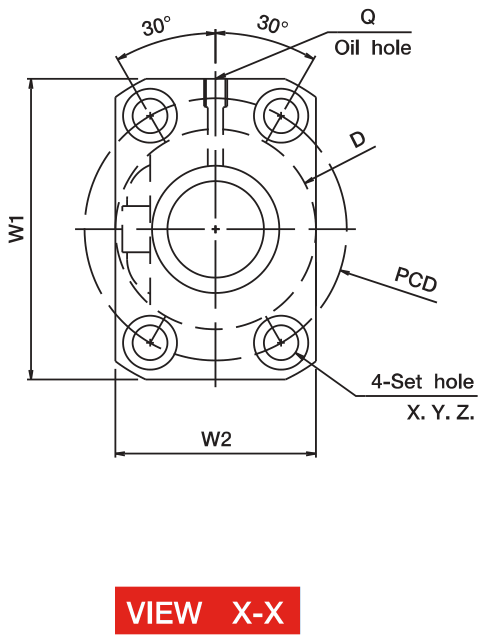

						Ca Kgf	Coa Kgf		Body D	W1	W2	Ln	T	PCD	X	Y	Z	Q	Ls	L1 (Ls-L2)	L2	C	B
NX-1505 2D DWG 3D STEP	15	5	3.175 (1/8")	12.4	2.5×1	700	1280	13	34	50	34	41	10	45	5.5	9	5.5	M6	610, 810, 1010	550, 750, 950	60	5	30
NX-1510 2D DWG 3D STEP		10	3.175 (1/8")	12.4	2.5×1	700	1290	13	34	50	34	52	12	45	5.5	9	5.5	M6	610, 810, 1010, 1210	550, 750, 950, 1150	60	5	30
NX-1520 2D DWG 3D STEP		20	3.175 (1/8")	12.4	1.5×1	470	820	8	34	50	34	60	12	45	5.5	9	5.5	M6	610, 810, 1010, 1210	550, 750, 950, 1150	60	5	30
NX-2005 2D DWG 3D STEP	20	5	3.175 (1/8")	17.4	2.5×1	840	1780	15	40	60	40	48	12	53	6.5	10.5	6.5	M6	610, 810, 1010	520, 720, 920	90	8	40
NX-2010 2D DWG 3D STEP		10	3.969 (5/32")	16.7	2.5×1	1150	2320	18	46	66	46	54	13	59	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	520, 720, 920, 1120, 1420	90	8	40
NX-2020 2D DWG 3D STEP		20	3.969 (5/32")	16.7	1.5×1	730	1340	11	46	66	46	65	13	59	6.5	10.5	6.5	M6	610, 810, 1010, 1210, 1510	520, 720, 920, 1120, 1420	90	8	40
NX-2505 2D DWG 3D STEP	25	5	3.175 (1/8")	22.4	2.5×1	960	2270	17	47	66	47	48	12	60	6.5	10.5	6.5	M6	610, 810, 1010	500, 700, 900	110	8	50
NX-2510 2D DWG 3D STEP		10	4.763 (3/16")	20.9	2.5×1	1630	3420	21	52	78	52	65	15	68	9	14	8.5	M6	810, 1010, 1210, 1610, 2010	700, 900, 1100, 1500, 1900	110	8	50
NX-2520 2D DWG 3D STEP		20	4.763 (3/16")	20.9	1.5×1	1060	2100	13	52	78	52	70	15	68	9	14	8.5	M6	810, 1010, 1210, 1610, 2010	700, 900, 1100, 1500, 1900	110	8	50

※ 정밀연삭 볼스크류 · 콤팩트형 싱글너트 (축경 15·20·25) · 단위: 하중 Kgf, 치수 mm · 2D·3D 도면은 모델명 아래 버튼으로 내려받을 수 있습니다.
