STANDARD PARTSNGTR Series

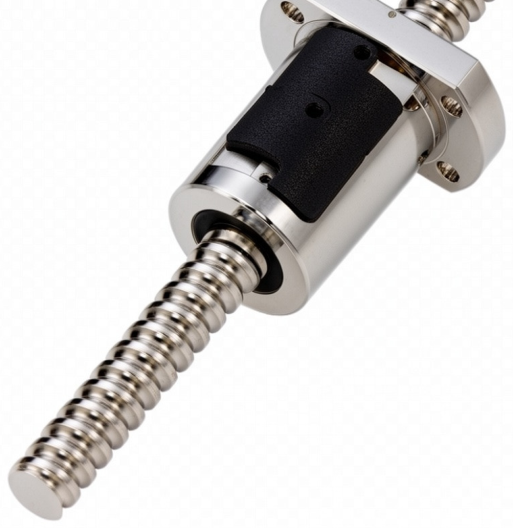

Rolled - Ball Screw (P-type)
| Model number | Screw diameter d | Lead l | Ball diameter Da | Root diameter dr | Turn × Circuit | Load rating | Axial clearance Max (mm) | Nut (Dimension) | Standard shaft length | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

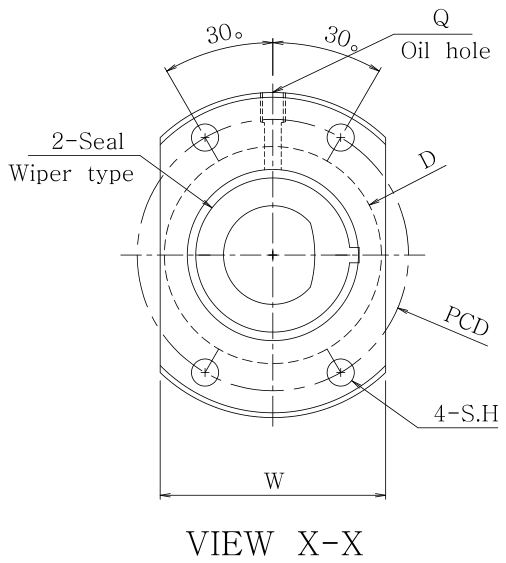

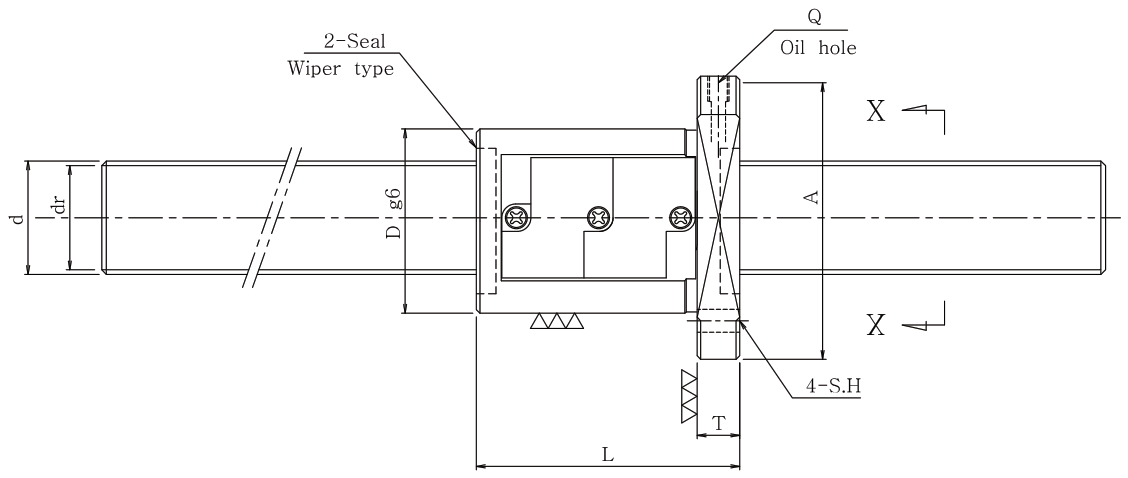

| Ca Kgf | Coa Kgf | Body D | Flange | L | PCD | Set hole | Oil hole | ||||||||||
| W | A | T | S.H | Q | |||||||||||||
| NGTR-1605A | 16 | 5 | 3.175 (1/8") | 13.4 | 2.5×1 | 560 | 1290 | 0.07 | 34 | 36 | 54 | 10 | 40 | 44 | 4.5 | M6x1.0 | 1000, 1500, 2000 |
| NGTR-1610A | 10 | 3.175 (1/8") | 13.4 | 2.5×1 | 560 | 1290 | 0.10 | 34 | 36 | 57 | 10 | 50 | 45 | 5.5 | M6x1.0 | 1000, 1500, 2000 | |
| NGTR-2005A | 20 | 5 | 3.175 (1/8") | 17.4 | 2.5×1 | 640 | 1520 | 0.07 | 40 | 42 | 59 | 10 | 40 | 50 | 4.5 | M6x1.0 | 1000, 1500, 2000, 3000 |
| NGTR-2010A | 10 | 4.763 (3/16") | 16.3 | 2.5×1 | 1120 | 2490 | 0.10 | 52 | 58 | 82 | 12 | 61 | 67 | 6.6 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| NGTR-2505A | 25 | 5 | 3.175 (1/8") | 22.4 | 2.5×1 | 730 | 1970 | 0.07 | 43 | 45 | 67 | 11 | 41 | 55 | 5.5 | M6x1.0 | 1000, 1500, 2000, 3000 |
| NGTR-2510A | 10 | 6.350 (1/4") | 19.8 | 2.5×1 | 1780 | 3610 | 0.10 | 60 | 65 | 96 | 15 | 67 | 78 | 9 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| NGTR-2510B | 10 | 6.350 (1/4") | 19.8 | 2.5×2 | 3220 | 7230 | 0.10 | 60 | 65 | 96 | 15 | 97 | 78 | 9 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| NGTR-3205A | 32 | 5 | 3.175 (1/8") | 29.4 | 2.5×1 | 790 | 2210 | 0.07 | 55 | 58 | 78 | 12 | 42 | 65 | 6.6 | M6x1.0 | 1000, 1500, 2000, 3000 |
| NGTR-3210A | 10 | 6.350 (1/4") | 26.8 | 2.5×1 | 2050 | 4950 | 0.15 | 67 | 72 | 103 | 15 | 67 | 85 | 9 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| NGTR-3210B | 10 | 6.350 (1/4") | 26.8 | 2.5×2 | 3650 | 10550 | 0.15 | 67 | 72 | 103 | 15 | 97 | 85 | 9 | M6x1.0 | 1000, 1500, 2000, 3000 | |
| NGTR-3610B | 36 | 10 | 6.350 (1/4") | 30.8 | 2.5×2 | 3870 | 11200 | 0.12 | 70 | 76 | 109 | 17 | 99 | 90 | 11 | M6x1.0 | 1000, 1500, 2000, 3000 |
| NGTR-4010B | 40 | 10 | 6.350 (1/4") | 34.8 | 2.5×2 | 4130 | 13900 | 0.12 | 76 | 82 | 116 | 17 | 99 | 96 | 11 | M6x1.0 | 1000, 1500, 2000, 2500, 3000, 3500, 4000 |
| NGTR-5010B | 50 | 10 | 6.350 (1/4") | 44.8 | 2.5×2 | 4820 | 15900 | 0.12 | 88 | 94 | 128 | 17 | 99 | 106 | 11 | M6x1.0 | 1000, 1500, 2000, 2500, 3000, 3500, 4000 |
※ 전조 볼스크류 · GTR 개량형 P-type · 단위: 하중 Kgf, 치수 mm · 2D·3D 도면은 모델명 아래 버튼으로 내려받을 수 있습니다.
