STANDARD PARTS

GTR Series

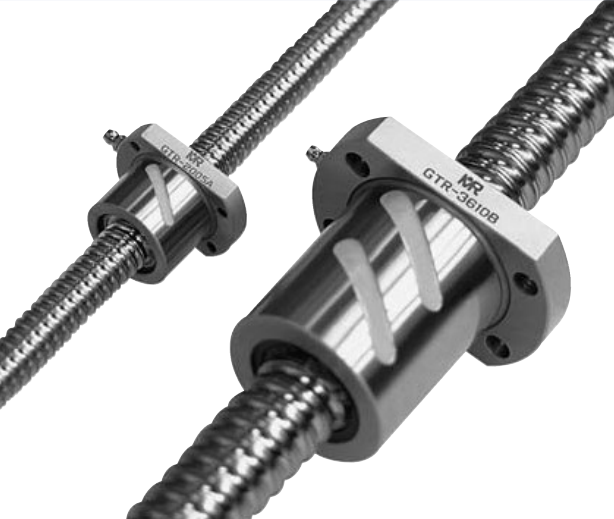

Rolled - Ball Screw (U-type)

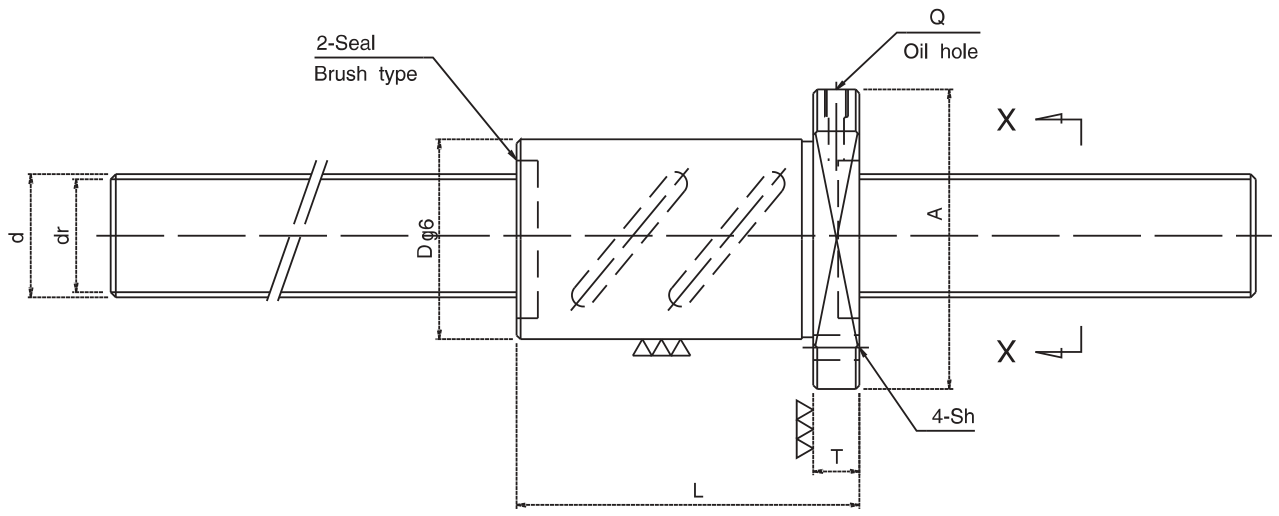

Model number	Screw diameter d	Lead l	Ball diameter Da	Root diameter dr	Turn × Circuit	Load rating		Axial clearance Max (mm)	Nut (Dimension)								Standard shaft length
						Ca Kgf	Coa Kgf		Body D	Flange			L	PCD	Set hole	Oil hole

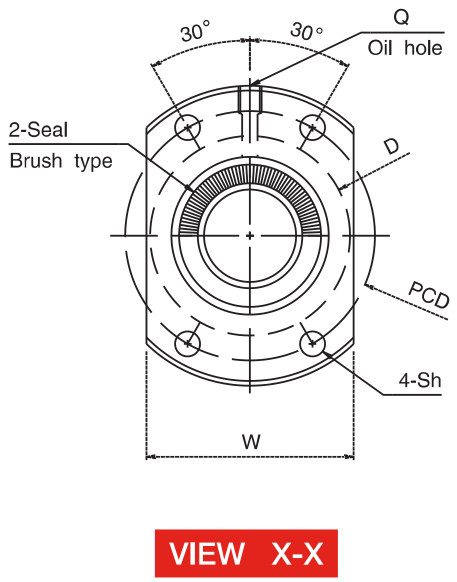

						Ca Kgf	Coa Kgf		Body D	W	A	T	L	PCD	S.H	Q
GTR-1605A 2D DWG 3D STEP	16	5	3.175 (1/8")	13.4	2.5×1	560	1290	0.07	34	36	54	10	40	44	4.5	M6x1.0	1000, 1500, 2000
GTR-1610A 2D DWG 3D STEP		10	3.175 (1/8")	13.4	2.5×1	560	1290	0.10	34	36	57	10	50	45	5.5	M6x1.0	1000, 1500, 2000
GTR-1620A 2D DWG 3D STEP		20	3.175 (1/8")	13.4	1.7×1	380	790	0.10	34	36	57	10	60	45	5.5	M6x1.0	1000, 1500, 2000
GTR-1620B 2D DWG 3D STEP		20	3.175 (1/8")	13.4	1.7×2	690	1580	0.10	34	36	57	10	60	45	5.5	M6x1.0	1000, 1500, 2000
GTR-2005A 2D DWG 3D STEP	20	5	3.175 (1/8")	17.4	2.5×1	640	1520	0.07	40	42	59	10	40	50	4.5	M6x1.0	1000, 1500, 2000, 3000
GTR-2010A 2D DWG 3D STEP		10	4.763 (3/16")	16.3	2.5×1	1120	2490	0.10	52	58	82	12	61	67	6.6	M6x1.0	1000, 1500, 2000, 3000
GTR-2020A 2D DWG 3D STEP		20	3.175 (1/8")	17.4	1.7×1	430	830	0.10	39	41	62	10	60	50	5.5	M6x1.0	1000, 1500, 2000, 3000
GTR-2020B 2D DWG 3D STEP		20	3.175 (1/8")	17.4	1.7×2	790	1660	0.10	39	41	62	10	60	50	5.5	M6x1.0	1000, 1500, 2000, 3000
GTR-2505A 2D DWG 3D STEP	25	5	3.175 (1/8")	22.4	2.5×1	730	1970	0.07	43	45	67	11	41	55	5.5	M6x1.0	1000, 1500, 2000, 3000
GTR-2510A 2D DWG 3D STEP		10	6.350 (1/4")	19.8	2.5×1	1780	3610	0.10	60	65	96	15	62	78	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-2510B 2D DWG 3D STEP		10	6.350 (1/4")	19.8	2.5×2	3220	7230	0.10	60	65	96	15	92	78	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-2525A 2D DWG 3D STEP		25	3.969 (5/32")	21.8	1.7×1	660	1330	0.10	47	51	74	12	70	60	6.6	M6x1.0	1000, 1500, 2000, 3000
GTR-2525B 2D DWG 3D STEP		25	3.969 (5/32")	21.8	1.7×2	1200	2660	0.10	47	51	74	12	70	60	6.6	M6x1.0	1000, 1500, 2000, 3000
GTR-2806B 2D DWG 3D STEP	28	6	3.969 (5/32")	25.2	2.5×2	1890	5120	0.08	50	52	80	12	65	65	6.6	M6x1.0	1000, 1500, 2000, 3000
GTR-3205A 2D DWG 3D STEP	32	5	3.175 (1/8")	29.4	2.5×1	790	2210	0.07	52	54	78	12	47	65	6.6	M6x1.0	1000, 1500, 2000, 3000
GTR-3210A 2D DWG 3D STEP		10	6.350 (1/4")	26.8	2.5×1	2050	4950	0.15	67	72	103	15	67	85	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-3210B 2D DWG 3D STEP		10	6.350 (1/4")	26.8	2.5×2	3650	10550	0.15	67	72	103	15	97	85	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-3220B 2D DWG 3D STEP		20	6.350 (1/4")	26.8	2.5×2	3650	10550	0.15	67	72	103	15	90	85	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-3232B 2D DWG 3D STEP		32	4.763 (3/16")	28.3	1.7×2	1750	4170	0.10	58	62	92	12	87	74	9.0	M6x1.0	1000, 1500, 2000, 3000
GTR-3610B 2D DWG 3D STEP	36	10	6.350 (1/4")	30.8	2.5×2	3870	11200	0.12	70	76	109	17	98	90	11.0	M6x1.0	1000, 1500, 2000, 3000
GTR-3620B 2D DWG 3D STEP	36	20	6.350 (1/4")	30.8	2.5×2	3870	11200	0.12	70	76	109	17	92	90	11.0	M6x1.0	1000, 1500, 2000, 3000
GTR-4010B 2D DWG 3D STEP	40	10	6.350 (1/4")	34.8	2.5×2	4130	13900	0.12	76	82	116	17	98	96	11.0	M6x1.0	1000, 1500, 2000, 3000, 4000
GTR-4020B 2D DWG 3D STEP		20	6.350 (1/4")	34.8	2.5×2	4130	13900	0.12	76	82	116	17	92	96	11.0	M6x1.0	1000, 1500, 2000, 3000, 4000
GTR-4040B 2D DWG 3D STEP		40	6.350 (1/4")	34.8	1.7×2	2810	7150	0.12	73	79	114	17	107	93	11.0	M6x1.0	1000, 1500, 2000, 3000, 4000
GTR-5010B 2D DWG 3D STEP	50	10	6.350 (1/4")	44.8	2.5×2	4820	15900	0.12	88	94	128	17	98	106	11.0	M6x1.0	1000, 1500, 2000, 3000, 4000
GTR-5020B 2D DWG 3D STEP		20	6.350 (1/4")	44.8	2.5×2	4820	15900	0.12	88	94	128	17	92	106	11.0	M6x1.0	1000, 1500, 2000, 3000, 4000
GTR-5050B 2D DWG 3D STEP		50	7.938 (5/16")	43.7	1.7×2	4120	10850	0.15	90	96	135	20	125	112	14.0	M6x1.0	1000, 1500, 2000, 3000, 4000

※ 전조 볼스크류 · U-type 리턴튜브 매립형 JIS 규격품 · 단위: 하중 Kgf, 치수 mm · 2D·3D 도면은 모델명 아래 버튼으로 내려받을 수 있습니다.
